What is GIS?

Download Technical Sheet

MonoGIS

Single Gas Injection System



1

Ultra-High Vacuum compatible
for clean environment required in advanced technologies

2

Its compactness
will give you the possibility to mount several systems
on a single chamber and realize 3D nanostructures

3

 Conductive or insulating deposition
using FIBID or FEBID techniques (Focused Electron/Ion
Beam Induced Depositions)

4

 Increased FIB etching rate
with an expected quality, accuracy and repeatability using
chemistry coupled to ion or electron sputtering

5

 Controlled injected gas flow
by an accurate temperature regulator

6

 No possible chemical contact
with precursors for user’s safety

7

 A Direct Injection Module (DIM)
can be mount to inject a large choice of gaseous
precursors



  • MonoGIS nozzle approaching the sample surface

  • Circuit delayering realized with Tescan XEIA3 (i-FIB + MonoGIS) / FOV = 20 µm

  • Platinum deposition using MonoGIS on TESCAN FERA3 (i-FIB) / FOV = 400 µm

  • SiOx array fabrication with MonoGIS

Application
Note Download Technical Sheet

5-line GIS

All-in-one Gas Injection System



1

5 independent gases
possibilities gathered in a single one device

2

No inadvertent cross-contamination
inside the 5 separated injection lines

3

 Conductive or insulating deposition
using FIBID or FEBID techniques (Focused Electron/Ion
Beam Induced Depositions)

4

 Increased FIB etching rate
with an expected quality, accuracy and repeatability using
chemistry coupled to ion or electron sputtering

5

 Controlled injected gas flow
by an accurate temperature regulator

6

 No possible chemical contact
with precursors for user’s safety

7

 Needle optimized position
for each sample position

8

 A Direct Injection Module (DIM)
can be mount to inject a large choice of gaseous
precursors

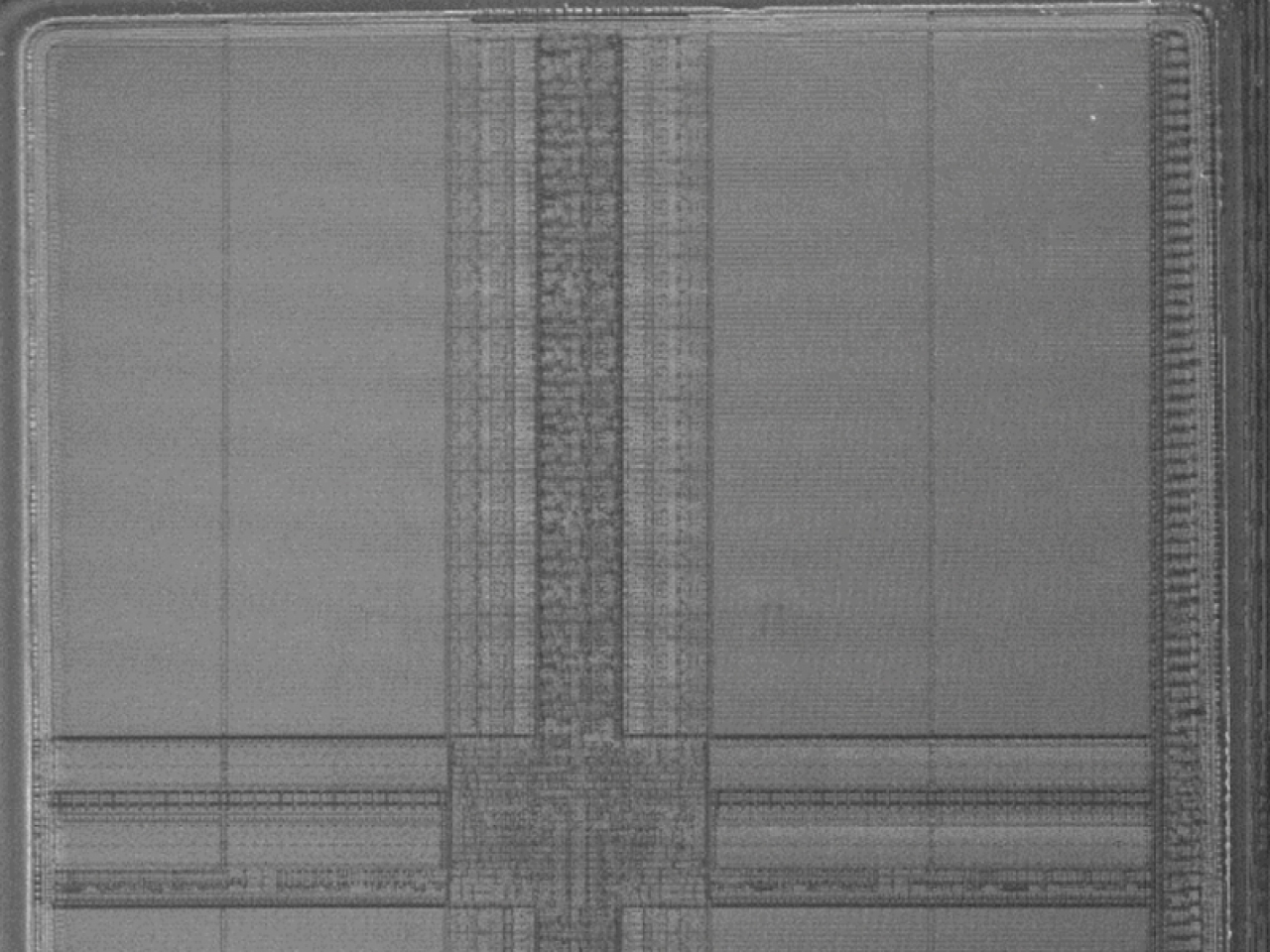

  • Chemistry-assisted plasma FIB delayering to control surface planarity realized with TESCAN XEIA3 (i-FIB column + 5-line GIS) / FOV = 15 µm

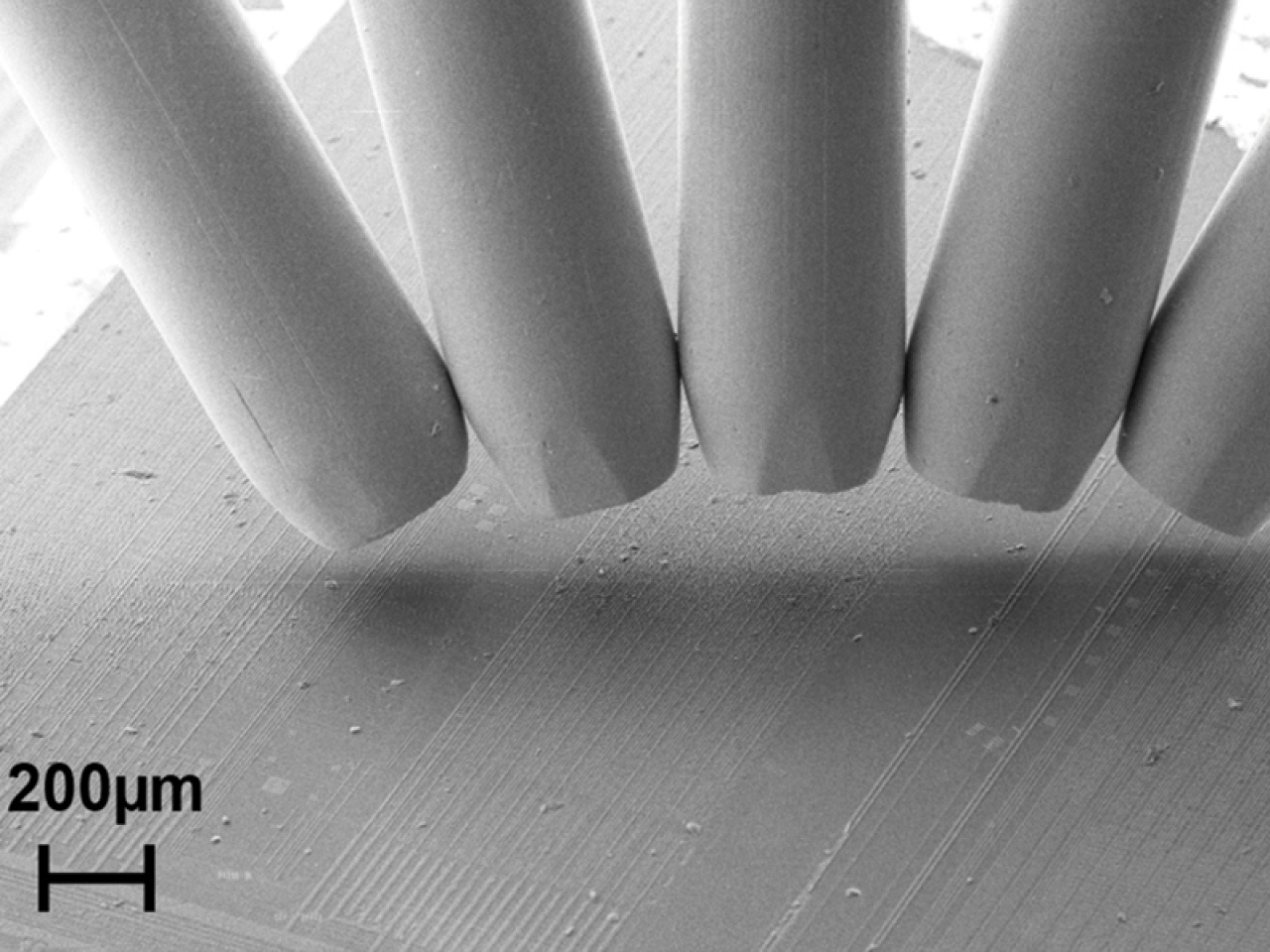

  • 5-line GIS nozzle approaching sample surface for testing

  • Cross section realized with TESCAN XEIA3 (i-FIB column + 5-line GIS) using water precursor to control surface planarity of integrated circuit (FOV = 5 µm)

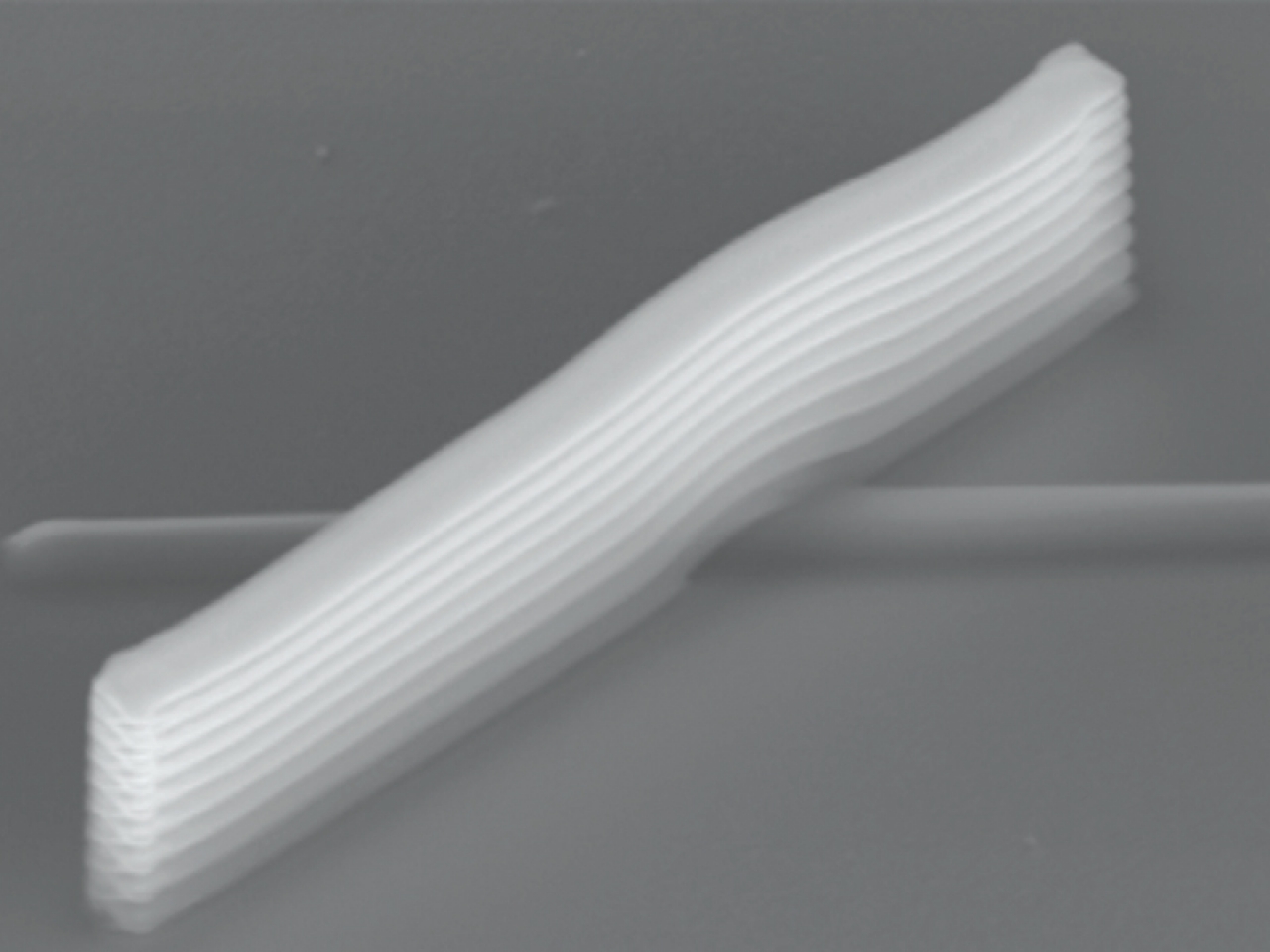

  • Multi-layer silicon oxide deposition with 5-line GIS coupled with an Orage FIB column (FOV = 40 µm)

Download Technical Sheet

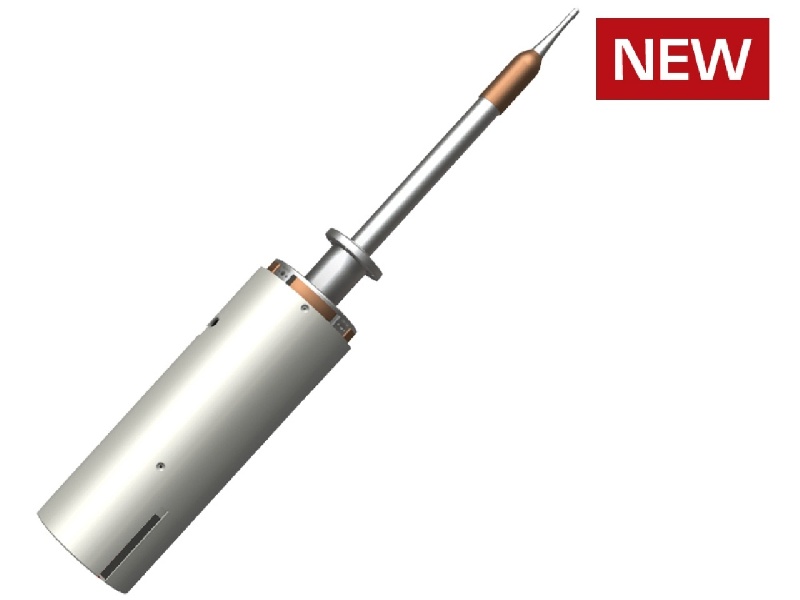

OptiGIS

The easy compact single
Gas Injection System



1

High speed temperature ramp-up :
OptiGIS is ready to operate in less
than 2 minutes after reservoir mounting

2

Its ultra-compact design
is an important advantage for massively equipped detectors/
devices to avoid over-crowding

3

 Controlled injected gas flow
by an accurate temperature regulator and conductance
reduction diaphragms especially designed for high vapor
pressure precursors

4

 Easy reservoir exchange
possible without venting the chamber with a reliable security
system to avoid any contact with chemical precursors

5

 No gas remanence
when stopping the injection thanks to an optimized
reservoir positioning

6

 Conductive or insulating deposition
using FIBID or FEBID techniques (Focused Electron/Ion
Beam Induced Depositions)

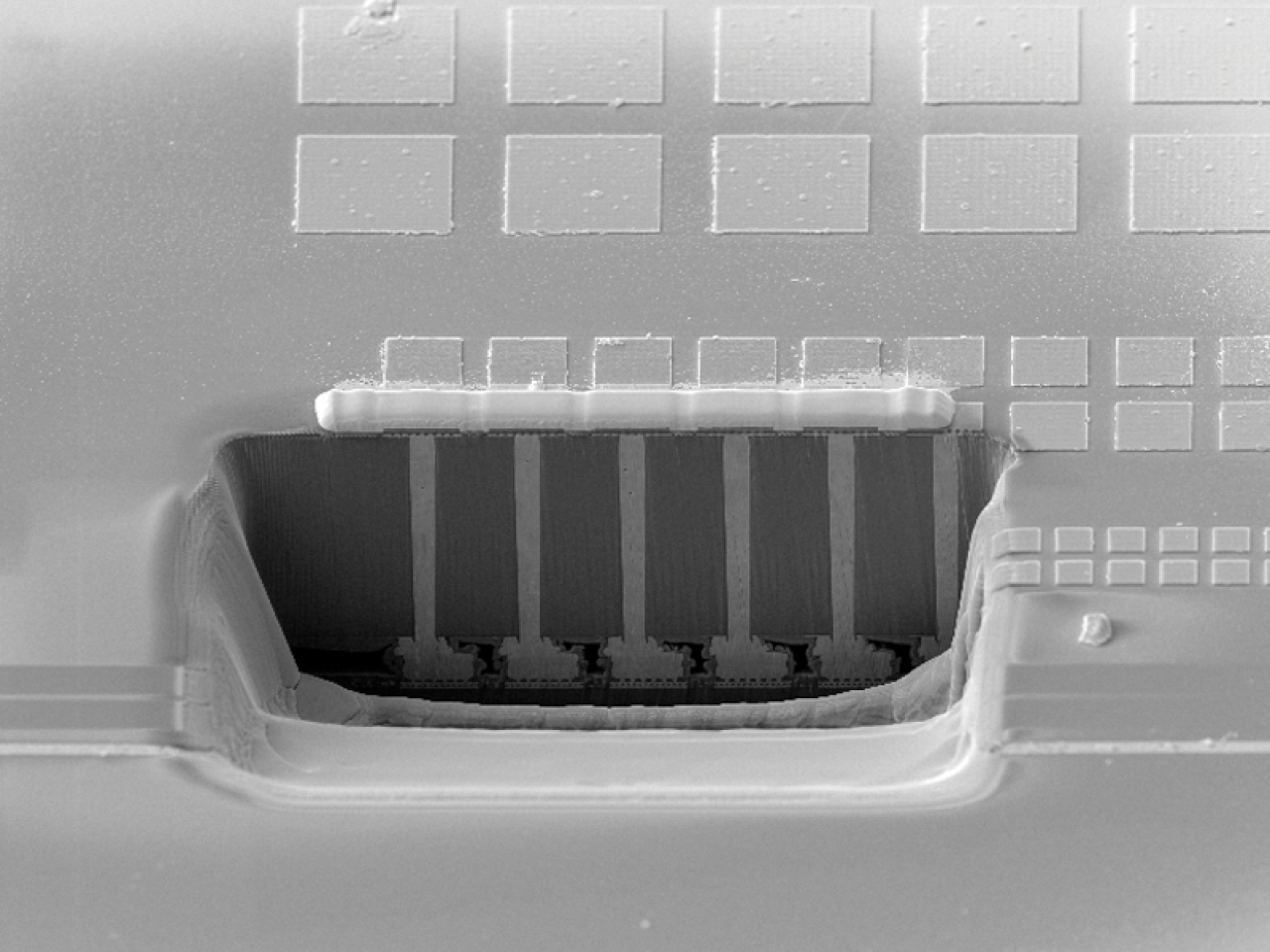

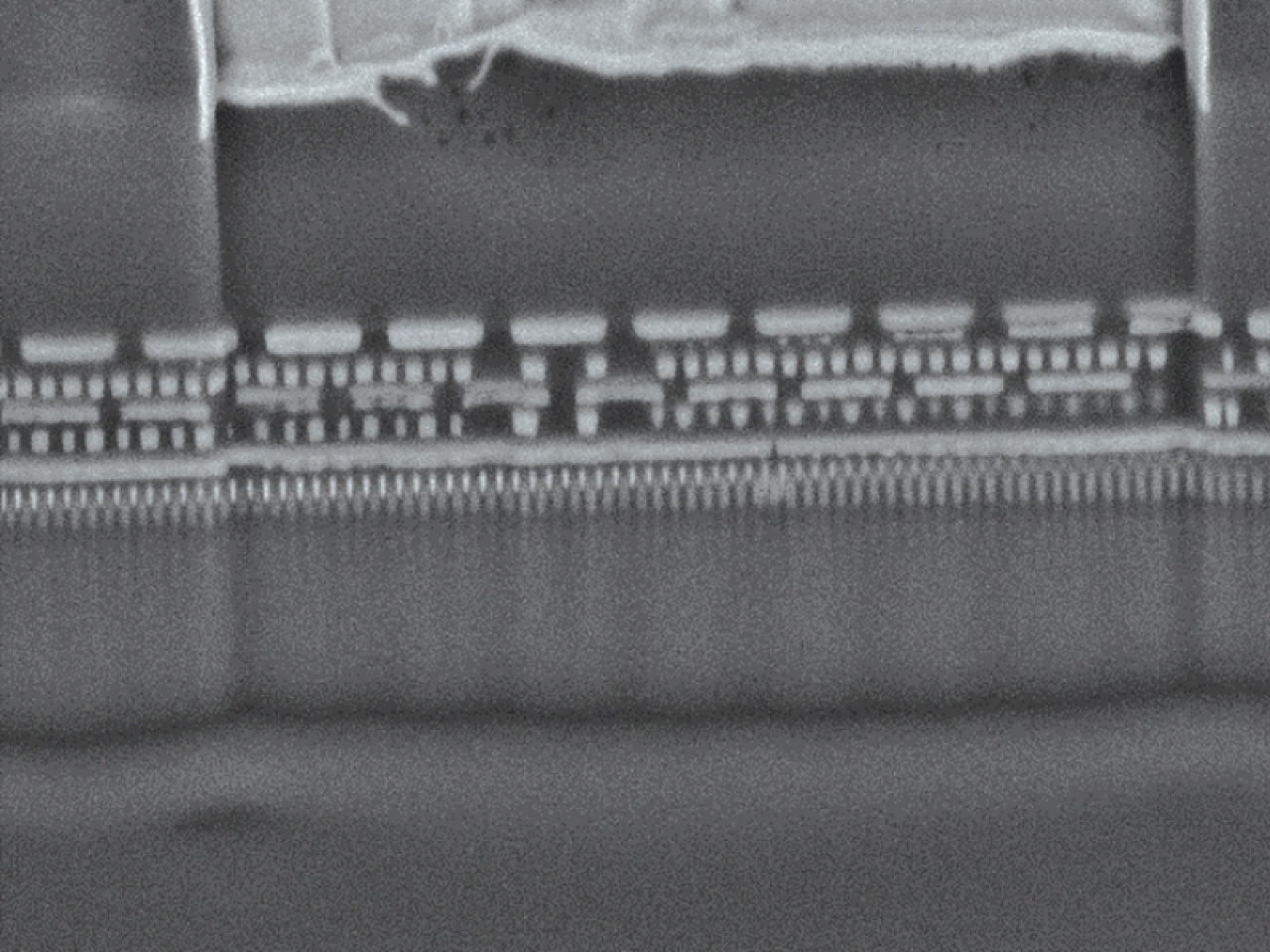

  • Cobra Ga FIB cross-section using Pt deposition for protection in a mobile display

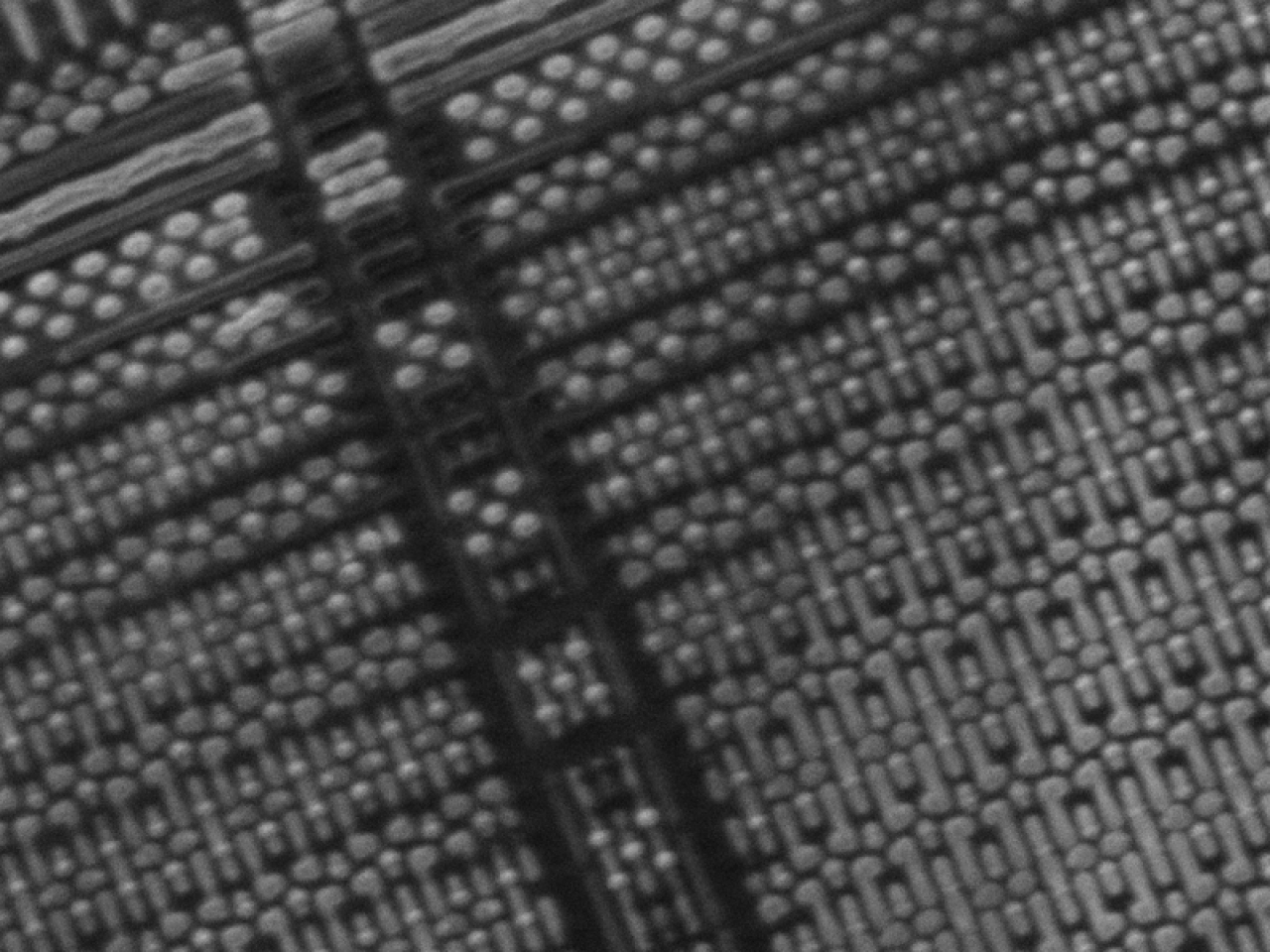

  • Circuit delayering and transistor layer using TESCAN XEIA3 (i-FIB + OptiGIS) / FOV = 4 µm

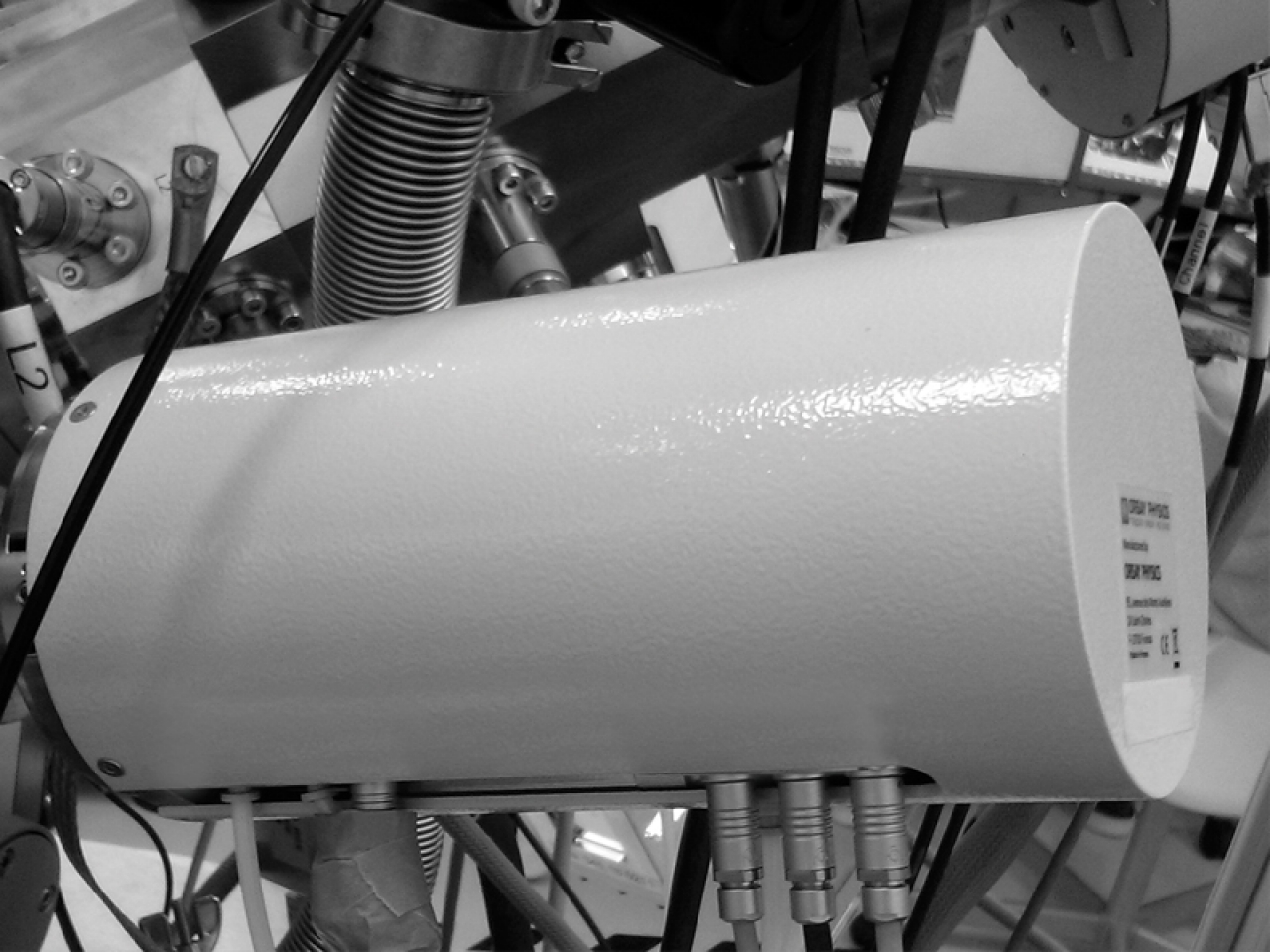

  • OptiGIS installed on a TESCAN LYRA3 chamber

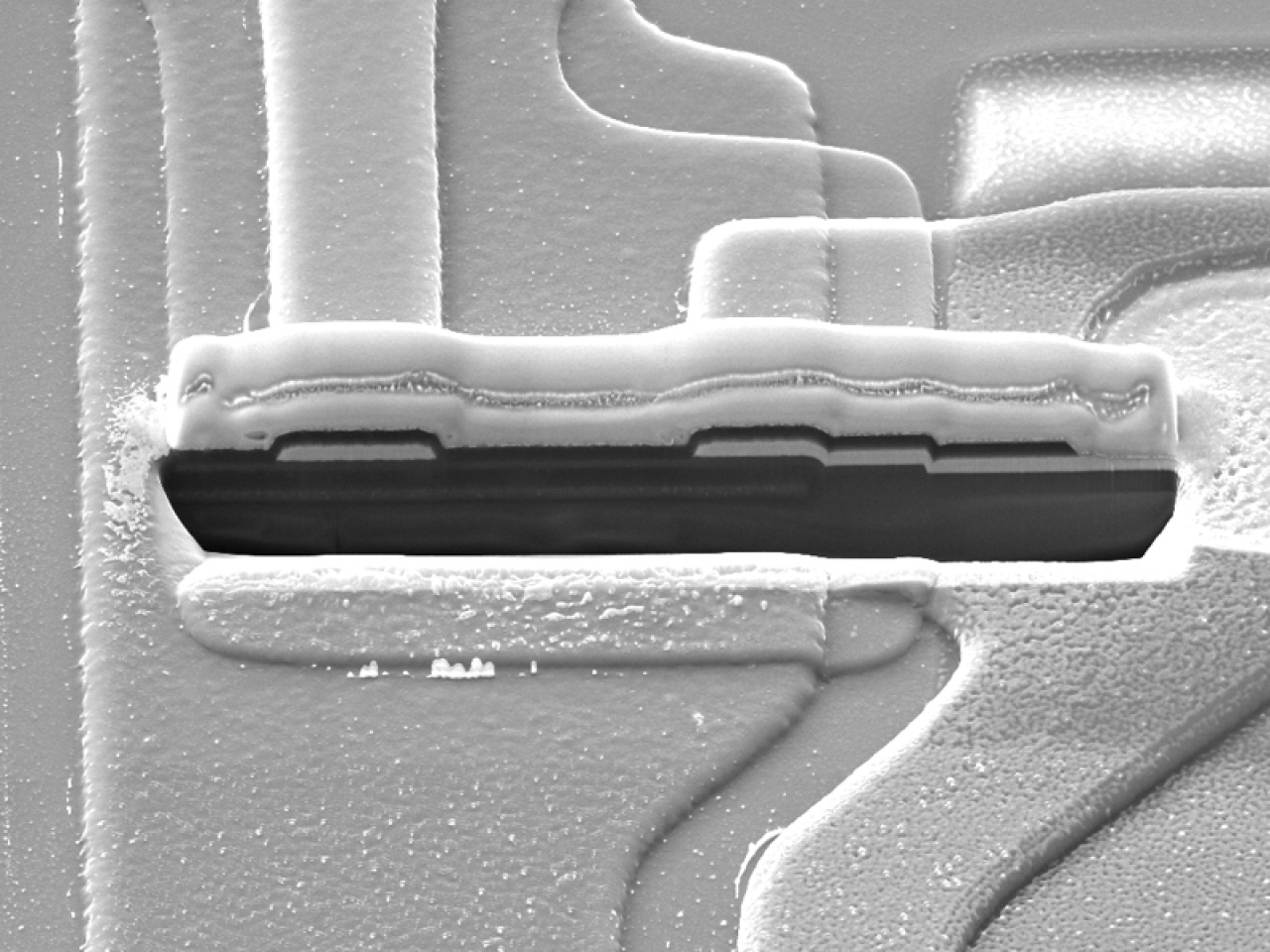

  • Platinum deposition for TSV (Through-silicon via) cross-section using OptiGIS
